MESCO Advantages
Top 3 ZAM steel suppliers in China.
First supplier that make ZM coating mass to 600g/㎡.
First enterprise that supplied ZAM steel pipe.
MESCO has rich project experience and can provide you with product recommendations.
MESCO has its own inventory of 7,000 to 12,000 tons per month, and the fastest delivery time is within 3 days!
We support deep processing: round pipes, square pipes, drilling, etc. The specifications are complete. Please feel free to contact me!
6 Key Questions About Zinc-Aluminum-Magnesium Steel Coils – Watch the Video to Learn More
Zn-Al-Mg Steel Description
| Item | Zn-Al-Mg Coated Steel Coil |
| Deliver port | Tianjin |
| Brand Name | MESCO STEEL |
Application | Construction, light industry, automobile, etc |
Delivery form | Steel Coil/Sheet |
Thickness | 0.2-8.0MM |
| Width | 600-1500MM |
Length | As clients' requests |
Certificate | API, CE, ROHS, SNI, BIS, SASO, PVOC, SONCAP, SABS, sirm, tisi, KS, JIS, GS, ISO |
Grade | DX51D-DX57D S220GD S250GD S550GD |
Coating | ZM40-80-600g/㎡ |
Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
Content | Zn: 90% Al: 3%-11% Mg: 1.5%-3% |
Surface Treatment | Chromated/Oiled |
Delivery Time | 3-15 days |
Base material | Cold rolled steel |
Coil Weight | 5-10 MT |
PAYMENT TERM | TT, LC, DA,DP, Western Union |
Zn-Al-Mg Steel Performance Characteristics
| YS | TS | Elongation after fracture of the following nominal thickness (mm): a80mm,%, ≥ |
MPA | MPA | 0.4~0.5 | >0.5~0.7 | >0.7 |
DC51D+ZM | - | 270~500 | 18 | 20 | 22 |
DC52D+ZM | 140~300 | 270~420 | 22 | 24 | 26 |
DC53D+ZM | 140~220 | 270~350 | 30 | 32 | 32 |
S250GD+ZM | 250 | 330 | 15 | 17 | 19 |
S280GD+ZM | 280 | 360 | 14 | 16 | 18 |
S320GD+ZM | 320 | 390 | 13 | 15 | 17 |
S350GD+ZM | 350 | 420 | 12 | 14 | 16 |
S390GD+ZM | 390~580 | 460 | 12 | 14 | 16 |
S420GD+ZM | 420~610 | 480 | 11 | 13 | 15 |
S450GD+ZM | 450~640 | 510 | 10 | 12 | 14 |
S550GD+ZM | 550 | 560 | - | - | - |
HC260LAD+ZM | 260~330 | 350~430 | 22 | 24 | 26 |
HC340LAD+ZM | 340~420 | 410~510 | 17 | 19 | 21 |
HC220YD+ZM | 220~280 | 340~420 | 28 | 30 | 32 |
HCT590X+ZM | 330~430 | 590 | 16 | 18 | 20 |
Product Characteristics of Zn-Al-Mg Steel
1、Excellent corrosion resistance
Zn-Al-Mg coatingsteel has better corrosion resistance. The increase of Al and Mg content in a certain range makes the corrosion resistance of Zn - Al-Mg coating steel sheet increase several times higher than that of Gl.
2、Good abrasion resistance
With low friction coefficient and stable friction characteristics, it is very favorable for punching. It can reduce the amount of wear on the coating, thereby reducing the part's pulling defects.
3、Good welding performance
The Zn-Al-Mg coating steel has good welding performance. The addition of magnesium can reduce the spatter of the weld attachment in the laser welding process and improve the welding performance.
Zn-Al-Mg Steel Testing and Inspection
Salt Spray Test 275 g/m²
The coating weight on both sides: 275g/㎡
Cut Edge Salt Spray Test (SST)
Cyclic Corrosion Test (CCT)
CCT After Drawing
Trimming Protection

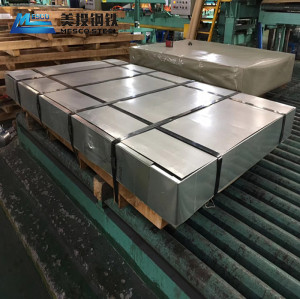

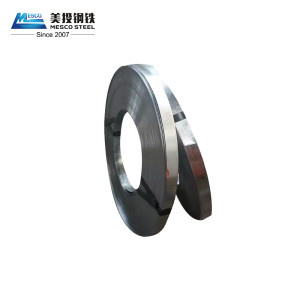

Zn-Al-Mg Steel Products Show
Zn-Al-Mg Steel Processing Service
Quality Certificate
SGS Test Report
Application Scenarios
The Karawang 100 Megawatts Photovoltaic Project
Time and Place: 2022 in Indonesia
Material: S350GD+ZM275/310 1.5/2.0MM
Al Kharsaa Solar Photovoltaic Power Project
Time and Place: 2021 in Qatar
Material: S350/550GD ZM275/310/350 1.5/2.0/3.0MM
200KM Highway Guardrail
Time and Place: 2022 in Ibagué,Colombia
Material: S550GD+ZM310 2.5MM
Livestock Farm Building Trusses
Time and Place: 2021 in Murun,Mongolia
Material: S550GD+ZM275 2.0MM
KAMAZ Automobile steel sheet for stamping
Time and Place: Long-term supply to Russia
Material: DX53D+ZM275 1.0/1.5/2.0MM
Spectrum Hardware
Time and Place: Long-term supply to Xiamen
Material: DX51D+ZM80 0.6/0.8/1.0MM
Modern granary
Time and Place:2022 in Algeria
Material: S350GD+ZM310 2.0/2.5/3.0MM
TCL Air conditioner outdoor unit
Time and Place: Long-term supply to Guangdong
Material: DX51D+ZM275 0.8/1.0MM
Processing Service
Packing and Shipping
FAQ
What is the difference between ZAM steel and Galvalume (GL) steel?
ZAM (Zn-Al-Mg) steel adds magnesium to the classic zinc-aluminum coating. The Mg content refines the coating structure and promotes a self-healing protective layer at cut edges, giving significantly better corrosion resistance than conventional Galvalume, especially in humid, salty or high-condensation environments.
What ZM coating weights does MESCO supply?
MESCO supplies ZM coating from 80 g/m² up to 600 g/m² on both sides, covering grades such as DX51D+ZM, DX53D+ZM, S350GD+ZM and S550GD+ZM. High coating weight ZM310/ZM350/ZM450 is available for heavy-duty structural applications.
Can ZAM steel be cut, bent, welded or roll-formed?
Yes. ZAM steel offers good formability, low friction for stamping and drawing, and good weldability. MESCO also provides deep processing including slitting, cutting, drilling, round pipe and square pipe production to your drawings.
What are the MOQ and delivery time?
Our monthly stock is 7,000–12,000 tons, so trial orders and mixed specifications are welcome. The fastest delivery is within 3 days for stocked specifications. Please send your inquiry for exact MOQ and lead time.
