MESCO Color Coated Aluminum Coil | PVDF Fluorocarbon Pre-Painted Aluminum Coil
- Model
- MS-CCAL-PVDF
Item specifics
- Coating System
- PVDF (Kynar 500 / Hylar 5000)
- Substrate Alloy
- AA1050 / AA1060 / AA3003 / AA3004 / AA5052
- Top Coat Dry Film
- Primer 5 micron + Top 20 to 22 micron
- Back Coat Dry Film
- Primer 5 micron + Back 5 micron
- Standard Gloss
- 25 +/- 5 at 60 degrees
- Pencil Hardness
- >= HB
- T-Bend
- 1T, no paint peel
- Salt Spray
- >= 1000 hours
Review
Description

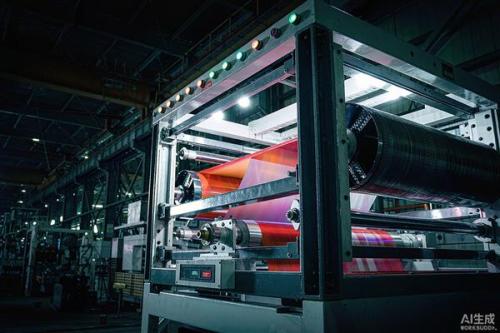

Factory direct fluorocarbon pre-painted aluminum coils in RAL colors with ASTM-grade outdoor durability. MESCO PVDF color coated aluminum coil is a continuous coil-coated aluminum sheet using a fluorocarbon (PVDF) resin topcoat over a corrosion-resistant primer. The PVDF top coat provides outstanding color retention, chalk resistance, and weather durability for outdoor architectural applications such as roofing, cladding, curtain walls, and composite panels. The aluminum substrate (alloys AA1050, AA1060, AA3003, AA3004, AA5052) is cleaned, chemically pre-treated, primed, and then coated with a PVDF topcoat on the front side and a protective back coat on the reverse. Coils are produced on a continuous coil coating line, then cured in a precision-controlled oven. PVDF top coat passes 2000 h OUVA-340 UV aging and 1000 h salt spray. Color stability under extreme sun, coastal, and industrial atmospheres. Chalking grade ≤ 1 after 2000 h ASTM G154 cycle. Long-term gloss retention for architectural facades and roofing. 1T T-bend and 9 J reverse impact ratings allow bending, roll-forming, stamping, and profiling without paint peel or cracking. Wide RAL color range plus custom matching. Small MOQ for special colors. Substrate alloy and temper selectable per project. Aluminum substrate weighs about one-third of equivalent steel. 100 percent recyclable with no loss of properties. 3000 tons monthly capacity. Slitting, cut-to-length, and protective film services available on the same line. Non-condensing humidity chamber 1000 h. No blistering, cracking, peeling, color change, gloss change, or hardness change. 5 percent HCl 24 h and 5 percent NaOH 24 h. No visible change to coating appearance. 100 deg C boiling water 2 h. No gloss loss, discoloration, cracking, blistering, or peeling observed. 1000 h ASTM B117. Blister grade below 2-S3. Chalking grade not lower than 8 by ASTM D4214 evaluation. OUVA-340 fluorescent UV lamp 2000 light hours. Chalking grade ≤ 1. No blister, cracking, or other defects. RAL color matching plus custom samples. Weather-resistant colors may be substituted with similar shades for durability. Incoming aluminum coils verified for alloy grade, temper, thickness tolerance, and surface quality before release. Alkaline degreasing, water rinse, and chrome-free conversion coating for paint adhesion and corrosion resistance. 5 micron corrosion-resistant primer applied by precision reverse roller coater on both sides. 20 to 22 micron PVDF top coat applied continuously. Controlled viscosity ensures smooth uniform finish. Multi-zone curing oven with precise peak metal temperature control guarantees full cross-linking of the coating. Cut to requested width, cut-to-length, protective film applied, and packed in seaworthy export packaging. Standing seam roofing, trapezoidal sheets, and tile-press profiles for warehouses, stadiums, and airports. Composite panels and cassette cladding systems for high-rise commercial and cultural buildings. Top skin of aluminum composite panels (ACP) for facade decoration and signage back panels. Linear ceilings, baffles, and decorative panels for airports, malls, and transit stations. Light boxes, outdoor billboards, and signage requiring long outdoor color retention. Pre-painted aluminum gutters, downspouts, and roof edge trims for residential projects. PVDF (polyvinylidene fluoride) is a fluorocarbon resin offering superior UV and weather resistance, ideal for outdoor facades with 15 to 20 year color retention. PE (polyester) is more economical and used for indoor or short term outdoor applications. MESCO recommends PVDF for projects requiring long-term color stability and warranty. AA3003 and AA3004 are the most common alloys for roofing and cladding thanks to their balanced strength and formability. AA5052 is recommended for marine or highly corrosive environments. AA1050 / AA1060 suit decorative and ceiling use where deep drawing is required. Standard coil thickness ranges from 0.18 mm to 1.5 mm, with coil widths up to 1800 mm. Cut-to-length sheets up to 6000 mm available. Custom tolerances and slit widths on request. Yes. Send a RAL number or physical color sample; our lab will prepare a lab dip within 5 to 7 days. For weather-resistant outdoor projects, we may recommend a substitute color with similar hue but proven UV durability. Standard RAL colors in standard thickness ship in 15 to 25 days. Custom colors require an extra 7 days for lab matching. Express production available for urgent project needs. Send your alloy grade, thickness, width, color, and quantity to mesco@mescogroup.com.cn. A MESCO engineer will reply with a detailed solution within 6 hours.PVDF Color Coated Aluminum Coil for Architectural Cladding
What Is PVDF Color Coated Aluminum Coil?
Key Features
ASTM-Grade Weather Resistance
Excellent Color Retention
Easy Fabrication
Custom RAL Colors
Lightweight & Recyclable
Stable Lead Times
Technical Specifications
Parameter Front Side Back Side Primer Dry Film 5 micron 5 micron Top / Back Coat Dry Film 20 - 22 micron 5 micron Total Coating Thickness 25 - 27 micron 10 micron Coating System PVDF (Kynar 500 / Hylar 5000) Polyester / Epoxy Substrate Alloys AA1050, AA1060, AA3003, AA3004, AA5052 Standard Gloss (60 degrees) 25 +/- 5 Cross-Cut Adhesion No paint peel (ASTM D3359) Pencil Hardness >= HB T-Bend 1T, no paint peel Reverse Impact 9 J, no paint peel MEK Solvent Rub 100 cycles, no break-through Scratch Resistance 1000 g load, no break-through Durability & Corrosion Test Results
Humidity Resistance
Acid & Alkali Resistance
Boiling Water Resistance
Neutral Salt Spray
UV Accelerated Aging
Color Matching Service
Production Process
Substrate Inspection
Cleaning & Pre-Treatment
Primer Coating
PVDF Top Coat
Oven Curing
Slitting & Packing
Typical Applications
Architectural Roofing

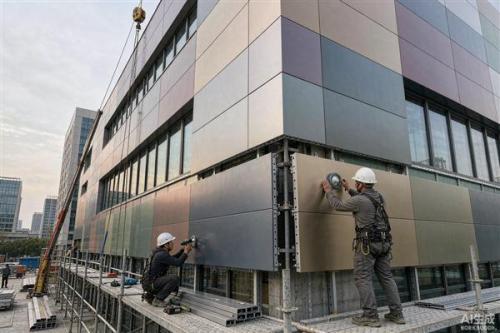

Curtain Wall Cladding
Composite Panels
Interior Ceiling
Advertising Signs
Rainware & Gutters
Frequently Asked Questions
What is the difference between PVDF and PE coating?
Which aluminum alloy should I choose for roofing?
What coil thickness range can MESCO supply?
Can MESCO match my custom RAL color?
How long is the lead time for bulk orders?
