MESCO PPGI PPGL PVC PET Film Laminated Prepainted Steel Coil Sheet with PE PVDF Coating
- Price
- US $550
- Model
- DX51D+Z DSX51D+AZ SGCC
- MOQ
- 25 metric ton
Item specifics
- Color
- RAL color
- Shape
- coil/plate
- Width
- 5-1575
- Thickness
- 0.12-2.0
- Grade
- DX51D+Z DSX51D+AZ SGCC
- Surface Treatment
- Coated
- Painting Thickness
- 10-500μm
- Coil Weight
- 4-8t
- Zinc Coating
- 30-500g/㎡
Review
Description
Product Introduiction
Specification
Specification | - |
Grade
|
commercial, deep drawing, structure
|
Shape
|
Coil/Plate
|
Width
|
650-1500mm
|
Thickness | 0.12-2.0mm |
Zinc coating | 30-500g/㎡ |
Paint Thickness | Top 5-40/Back 5-30 μm |
Paint Type | PE, HDP, SMP, PVDF |
Standard
Base Material
|
Zinc Coating
|
GI
|
30-275g/㎡
|
GL
|
30-275g/㎡
|
ZAM
|
40-450g/㎡
|
AL | 80-300g/㎡ |
OTHERS | As customer required |

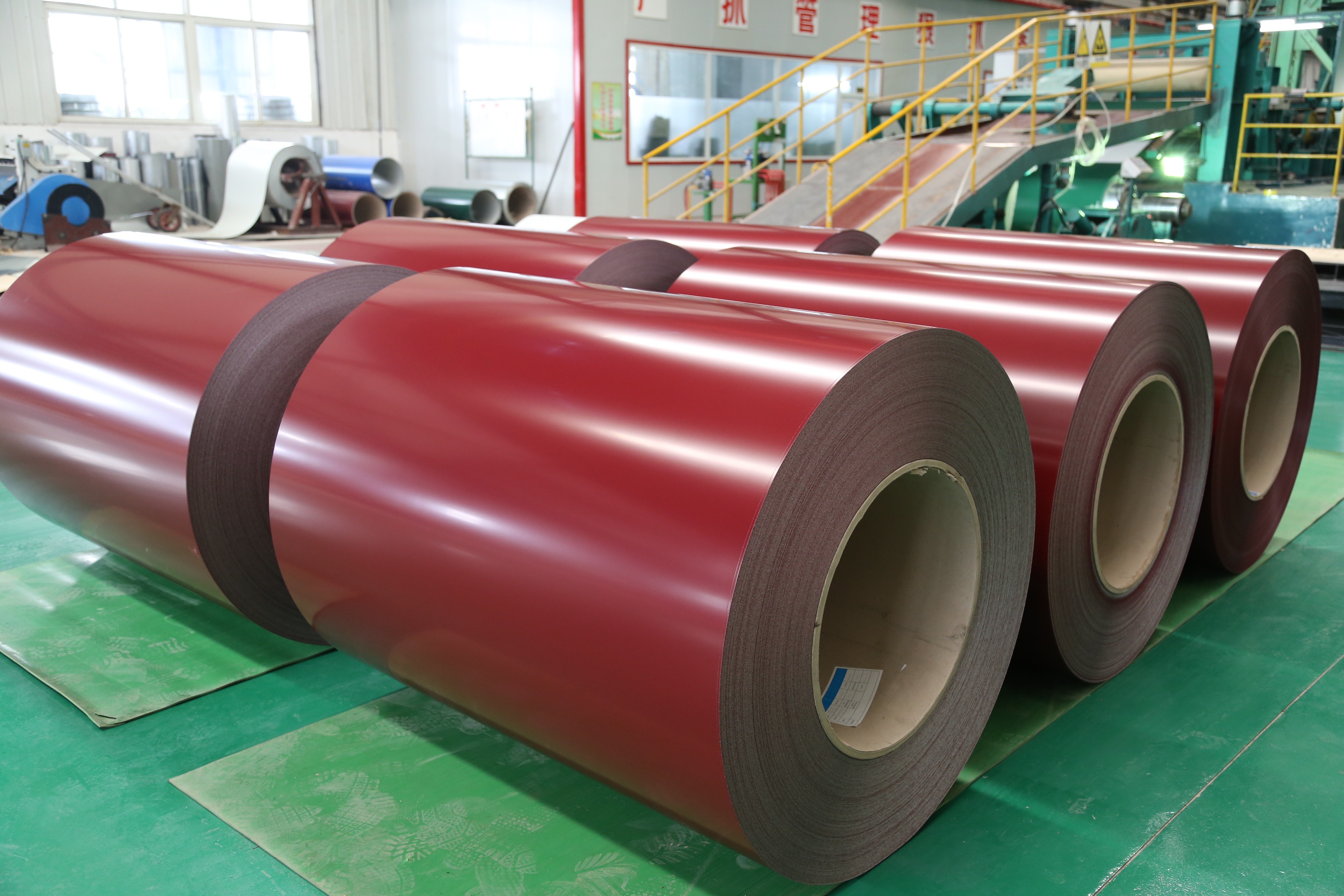

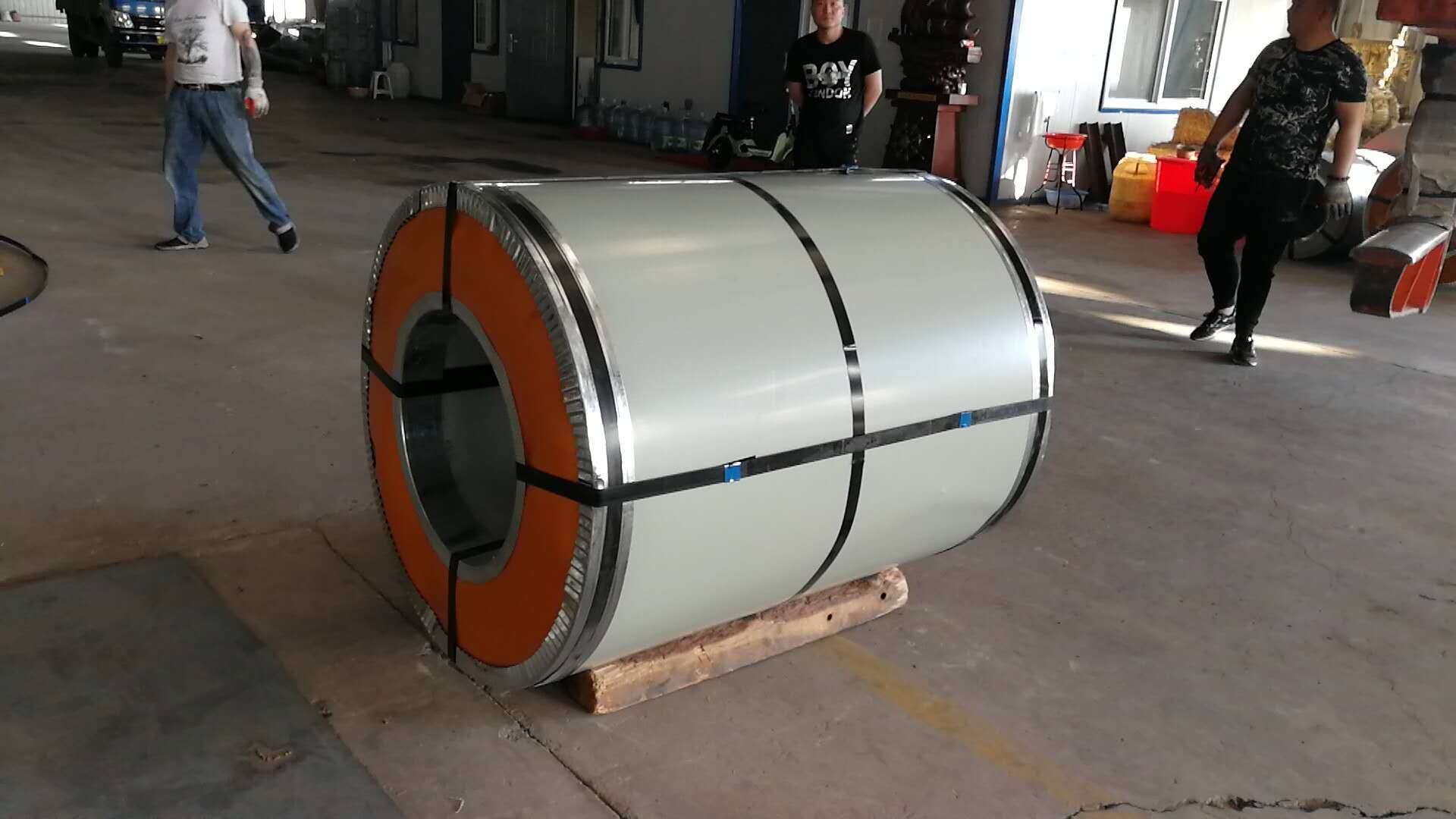

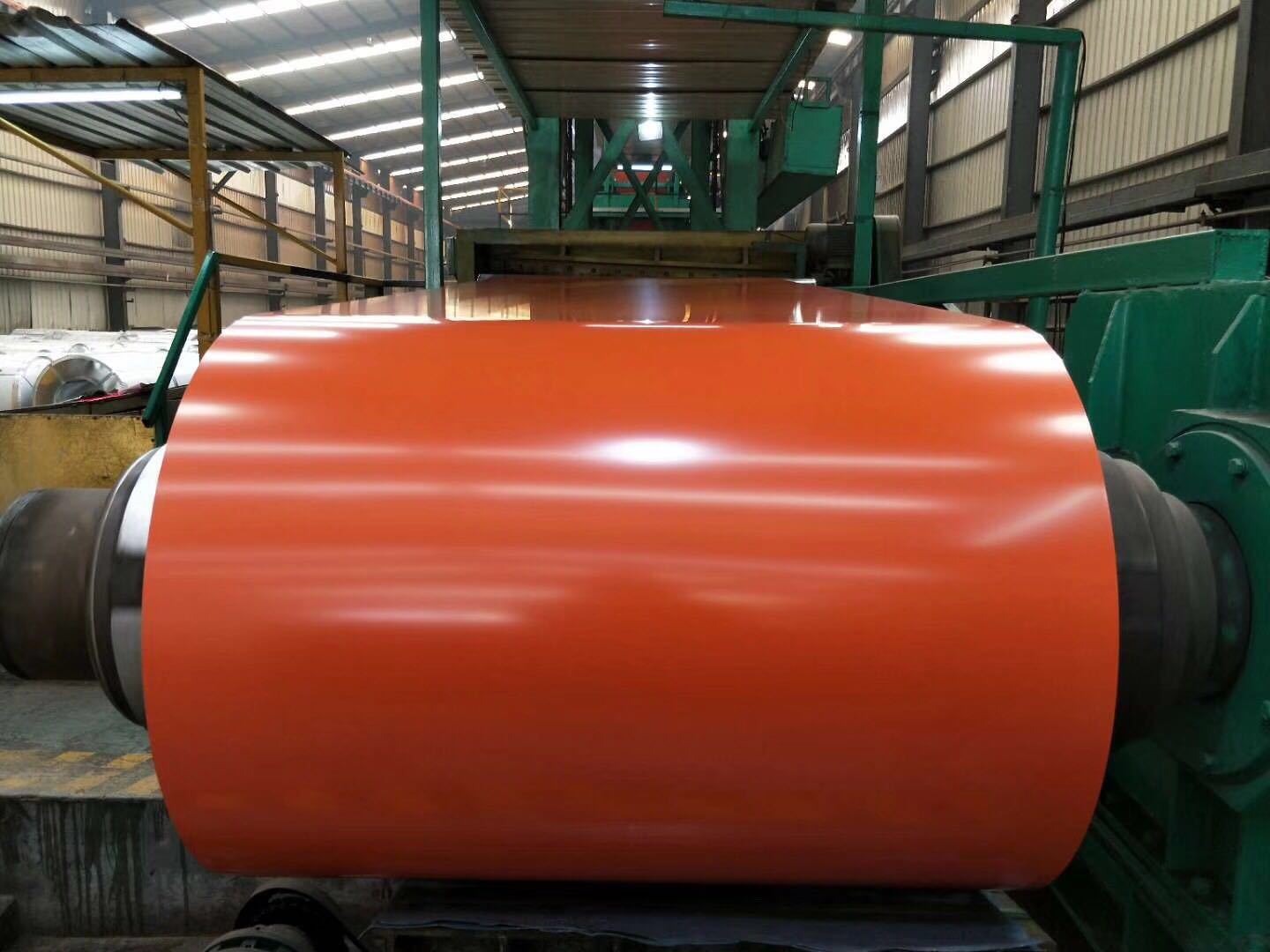

Prepainted Steel Coil/ Plate

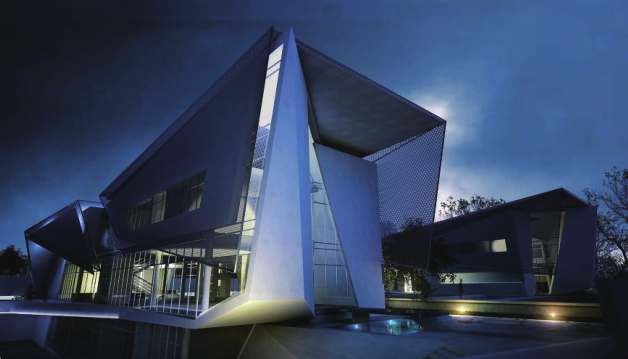

It is also called prepainted steel, widely used for construction, household appliances, transportation, packaging, machining, indoor decoration, medical equipment, automobile industry, etc.
Applications
Color coated steel is widely used, which has no pollution, excellent weather resistance, corrosion resistance, high processing characteristics.
Color coated steel is widely used in construction, home appliances, transportation, packaging, mechanical processing, interior decoration, medical treatment, automobile industry etc.




MESCO PPGI/PPGL Highlights ❤
1. Very experienced in supplying high zinc, high tensile, deep drawing prepainted steel, with competitive price and short delivery time.
2. Maximum thickness of common supplier is 1.2mm, but MESCO's is 2.0mm, with maximum width 1700mm, which is extremely rare in China.
3. The exclusive enterprise who can supply galvalume base metal of PPGL with 200 g/㎡
4. The exclusive enterprise whose thickest paint of PPGI can reach 65μm on the top and 40μm on the back.
5. Familiar with current steel industry condition of China and the markets of different countries. Be able to help the clients to position the product standard directly.

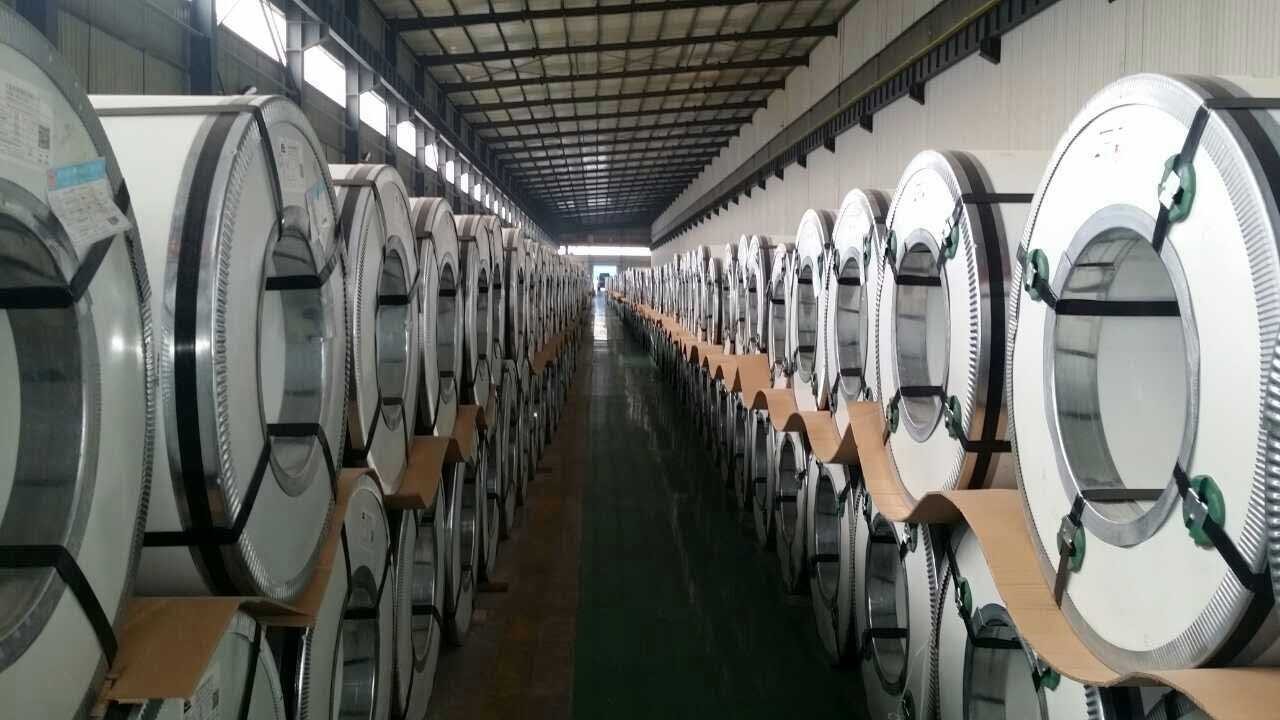

6. Ready stock 3000-4000 metric tons, which can meet the needs of clients any time.
7. Focus on mid and high grade of PPGI/PPGL, cooperating with famous paint brands, including Akzo Nobel, Beckers, Nippon, Valspar, KCC, etc, the quality is rather reliable.
Mesco Own Prepainted Steel
I. High-performance Power Color Coating Steel
Specification
Specification/ Standard
|
-
|
Thinkness
|
0.2-2.0mm
|
Width
|
5-1500mm
|
Zinc Coating | Z30-Z275 |
Paint Thickness | Top 45-300/Back 25-120 μm |

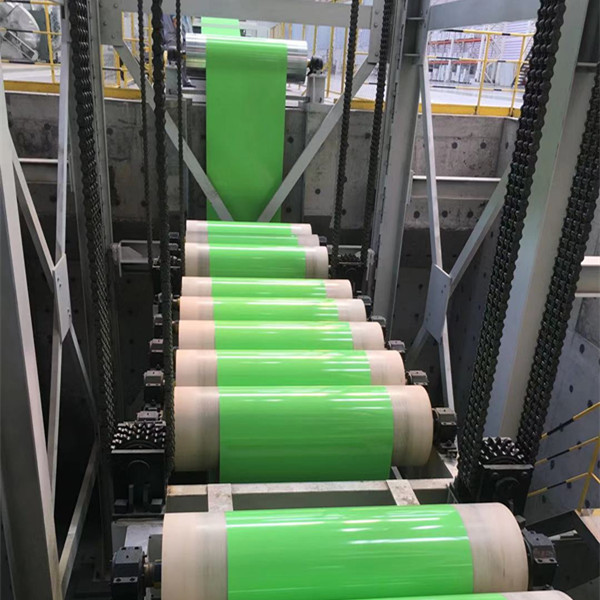

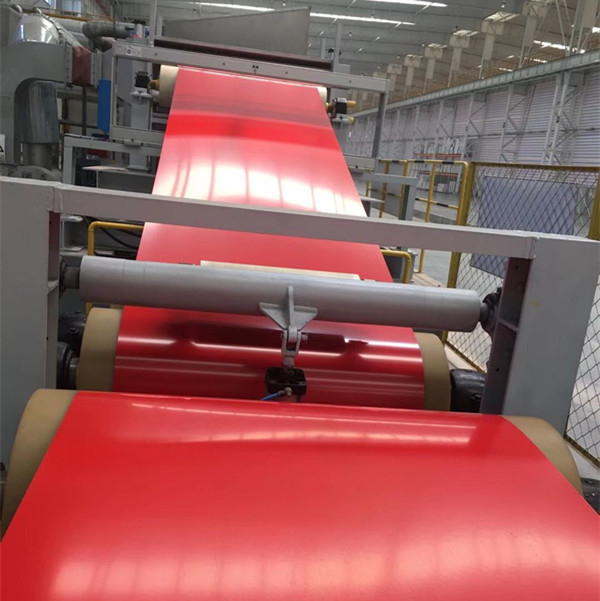

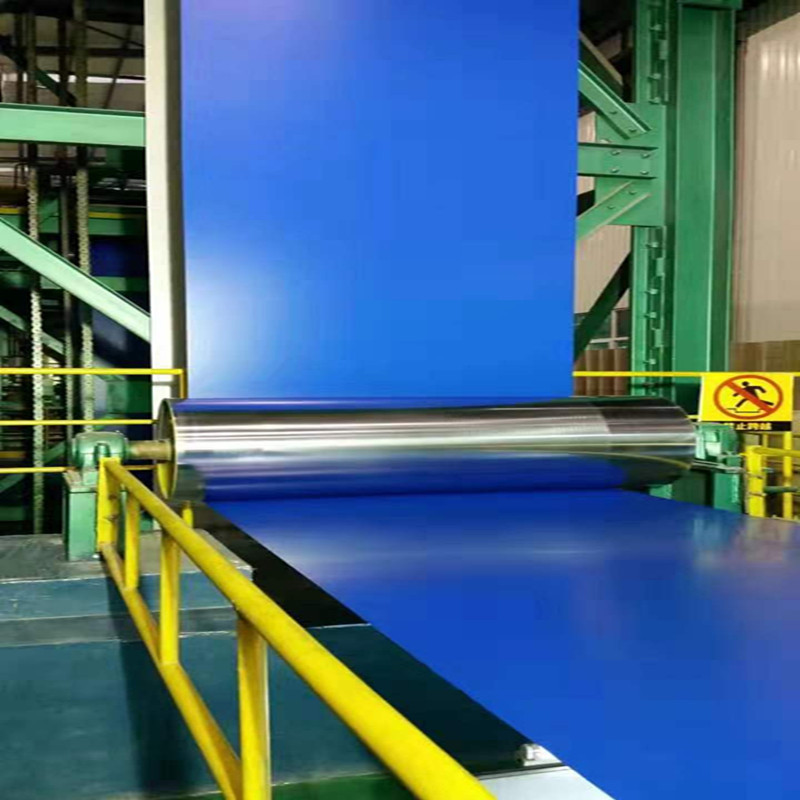

We adopts a fully automatic production line to achieve the green and clean manufacturing of powder coated steel sheets, the capacity being 500,000 t/a. Besides, with internationally advanced technologies, we can realize one-time coating. Both our equipment and coating materials have obtained lots of national invention patents. We completely reform the traditional production modes of prepainted steel sheets and weed out the disadvantages of the original processes like serious paint pollution, unsafe operation and high energy consumption. Besides, many properties of the powder coatings are superior to those of the old paint ones.
Based on multiple high-performance new materials, the raw materials employed for powder coating are free of solvent and VOC. And they enjoy the characteristics of energy conservation, safety, environmental protection as well as excellent adhesive force, weather resistance and corrosion resistance.
High-performance Power Coating VS Solvent-based Paint Coating


Item
|
High-performance Powder Coating |
Solvent-based Paint Coating
|
|
Film Substance
|
Polymer resin |
Resin
|
|
Status
|
Powder
|
Viscous liquid
|
|
Safety | Safe for storing, transporting and using | Flammable and combustible (potential safety hazards) | |
Coating Mode | Electrostatic adsorption coating | Roller coating and spraying | |
Energy Consumption | Low power consumption (30% saved) | High consumption of power and solvent resources | |
Utilization Ratio
|
Approximate to 100%
|
40-70%
|
|
Environmental Protection | Non-poisonous, odorless, free of VOC | With pungent smell and large quantities of VOC | |
T- bend Test | 0T-2T | ≤ 3T | |
Reverse Impact | ≥ 9J | ≥ 9J | |
Coating Thickness | 20-100μm | 15-30μm |
Applications

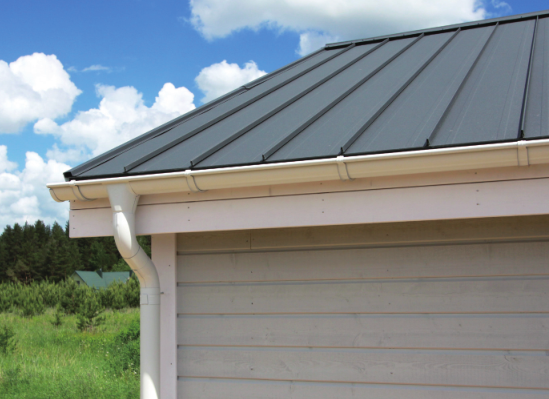

Polyester Series: building roofing, metal component, cable tray, outdoor wall panel, decorative sheet, roller shutter door,
steel door, household appliance, etc.

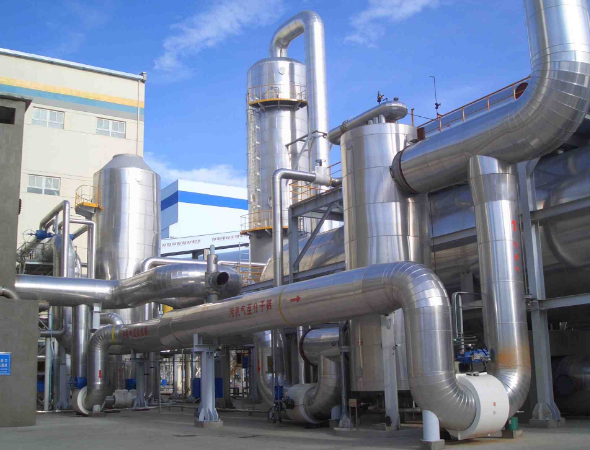

High Durable Series: building roofing, outdoor wall panel, airport terminal,subway station, villa, chemical industry, electricity, coastal humid areas, areas, exposed to severe corrosion, etc. which have high requirements for quality.
Decoration Series: building materials, decoration, outdoor wall panel, ceiling, steel door, household appliance, etc.
Function Series: outdoor wall panels of high rises, workshops in the industrial districts, severely-stricken by air pollution, etc. kitchen and household appliance, medical facilities and places with high requirements for environmental health.
Industry Series: products with heat-resistant requirements, e.g. baking ovens and exhaust funnels of autos.




II. Prepainted Steel with PVC/PET Film
Specification
Types | PVE/ PET |
Thinkness
|
0.2-2.0mm
|
Width
|
650-1500mm
|
Zinc Coating | 30-500g/㎡ |
Film Thickness | 30-500μm |
Paint Thickness | Top 5-40/Back 5-30 μm |

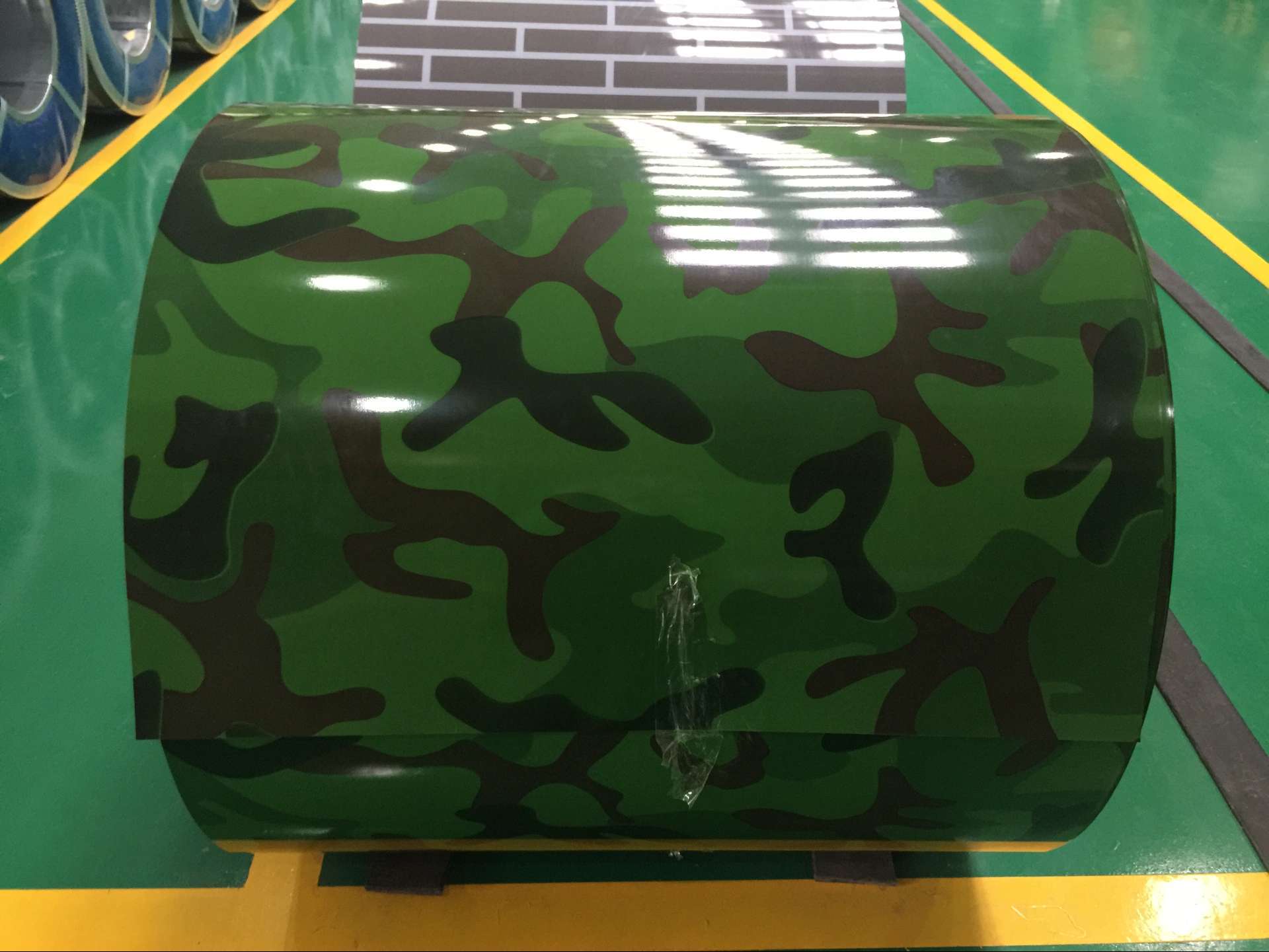

We have thousands of designs for protective film, including wood design, marble design, flower design, brick design, wrinkle design, matte design, high gloss etc. Customized is accepted.


Applications
* Decorative sheet
* Household appliance
* Anti-static environment
* Automotive trim
* Chemical industry
* Oil industry

III. Nano Photocuring Coated Steel —— Super Anti-corrosion Material
Specification
Thinkness
|
0.2-2.0mm
|
Width
|
650-1500mm
|
Zinc Coating
|
30-500g/㎡
|
Film Thickness
|
30-500μm
|
Paint Thickness | *** |


Nano Photocuring Coated Steel is the most advanced and unique coated technology in China, which only Mesco own.
Super anti-corrosive materials meet all anti-corrosive needs.
Applications

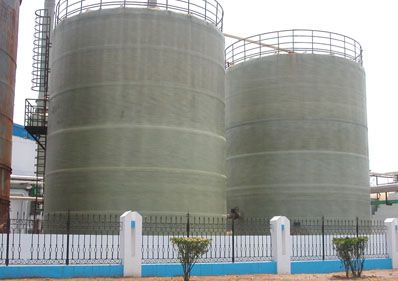

* Storage tanks
* Vessel
* Motor Vehicles
* Bridge Engineering
* Petroleum pipe line
* Container

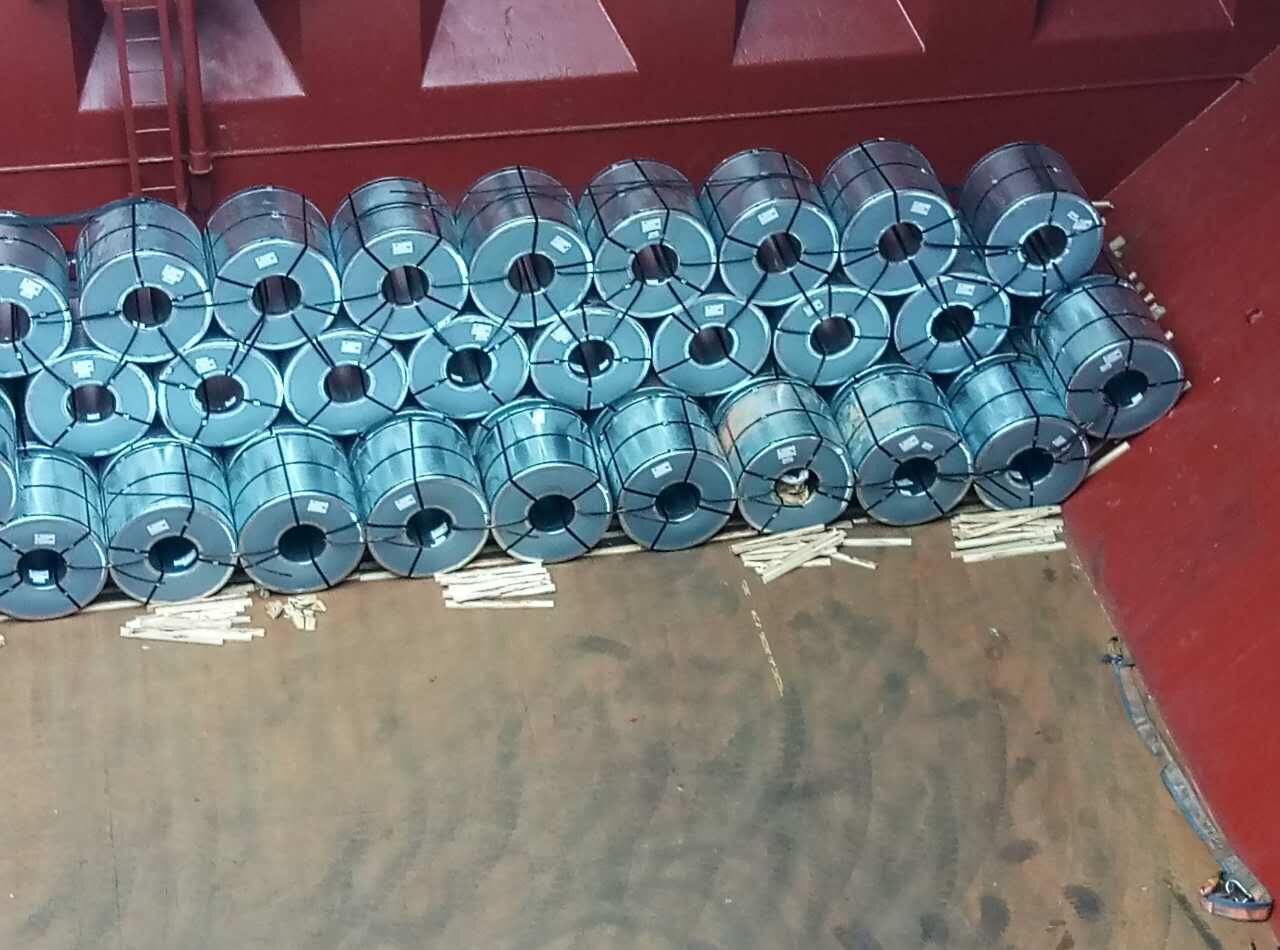

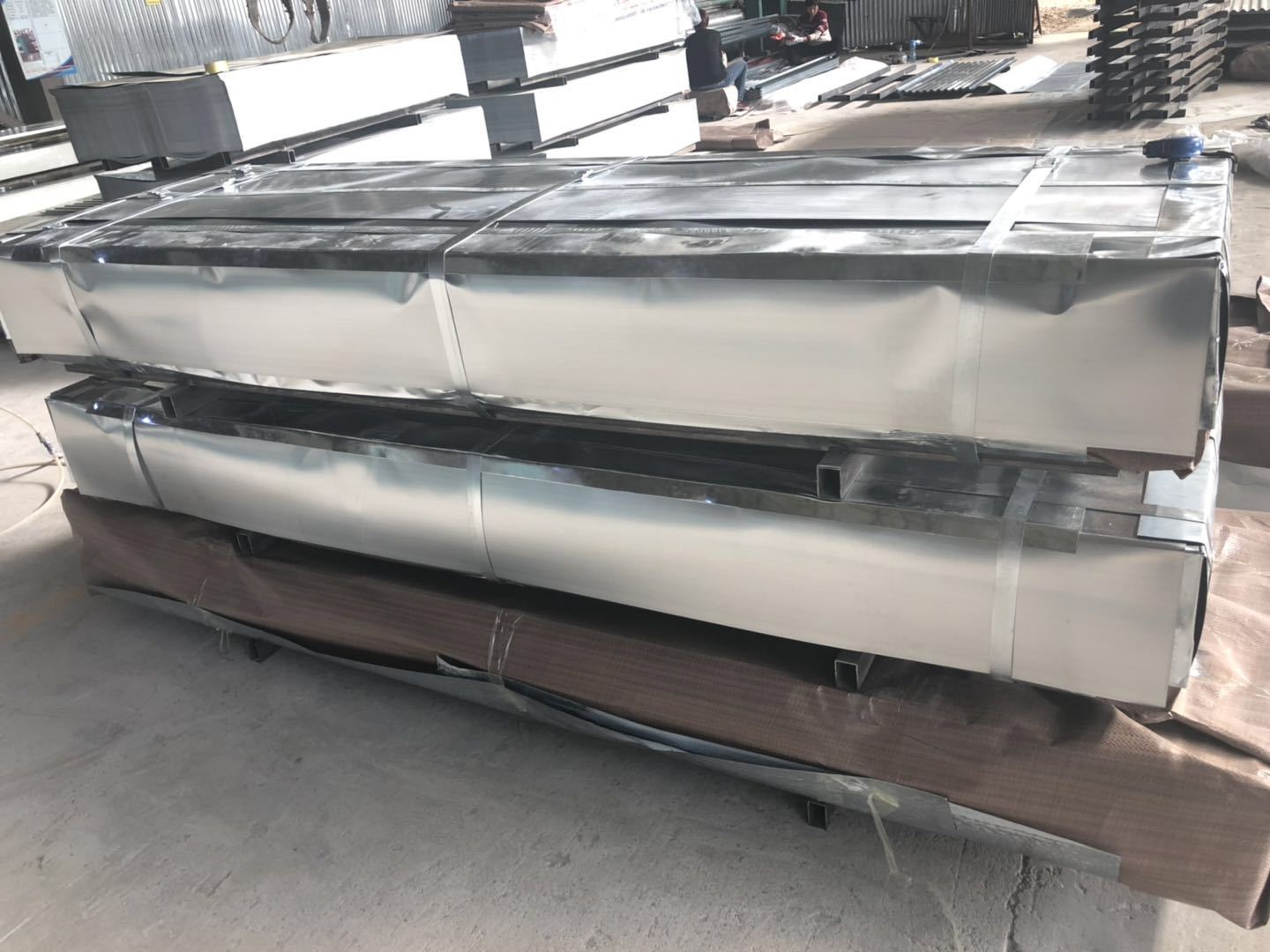

Package
Standard export seaworthy package: full metal packing lined with wateroof paper inner.
