MESCO DX53D Aluminized Steel Coil AS Steel for auto mobile exhausted Steel pipe
MESCO DX53D Aluminized Steel Coil  AS Steel for auto mobile exhausted Steel pipe
MESCO DX53D Aluminized Steel Coil  AS Steel for auto mobile exhausted Steel pipe
MESCO DX53D Aluminized Steel Coil  AS Steel for auto mobile exhausted Steel pipe
MESCO DX53D Aluminized Steel Coil  AS Steel for auto mobile exhausted Steel pipe
MESCO DX53D Aluminized Steel Coil  AS Steel for auto mobile exhausted Steel pipe
Price
US $1250
MOQ
25 metric ton

Review

Description

MESCO DX53D Aluminized Steel Coil  AS Steel for auto mobile exhausted Steel pipe
Detailed Information:

Brand Name: MESCO STEEL
Product Name: Aluminized steel coil
Standard: JIS G3314
Type: T1
Grades: DX51D-DX57D / S220GD-S550GD
Nominal Thickness: 0.16-3.0 mm
Width: Within 1600 mm
Substrate steel: Cold rolled steel
Zinc coating: 80-400g/m2
Surface treatment: Chromated/Oiled/AFP
Coil Inner Diameter: 508 / 610 mm
Coil weight: 6-10 tons

Aluminized Steel Coil
MESCO DX53D Aluminized Steel Coil  AS Steel for auto mobile exhausted Steel pipe
MESCO DX53D Aluminized Steel Coil  AS Steel for auto mobile exhausted Steel pipe
APPLICATIONS

Used for high heat applications, A463 is used for firewalls, heaters, incinerators, ovens, dryers and their housings.


Aluminized sheet and coil will maintain their bright appearance and provide long-term service at temperatures up to 900 degrees F – a higher temperature than comparable zinc-coated products can withstand. Even though aluminum corrodes faster than zinc, the oxide that forms on aluminum adheres tightly, protecting the base metal.

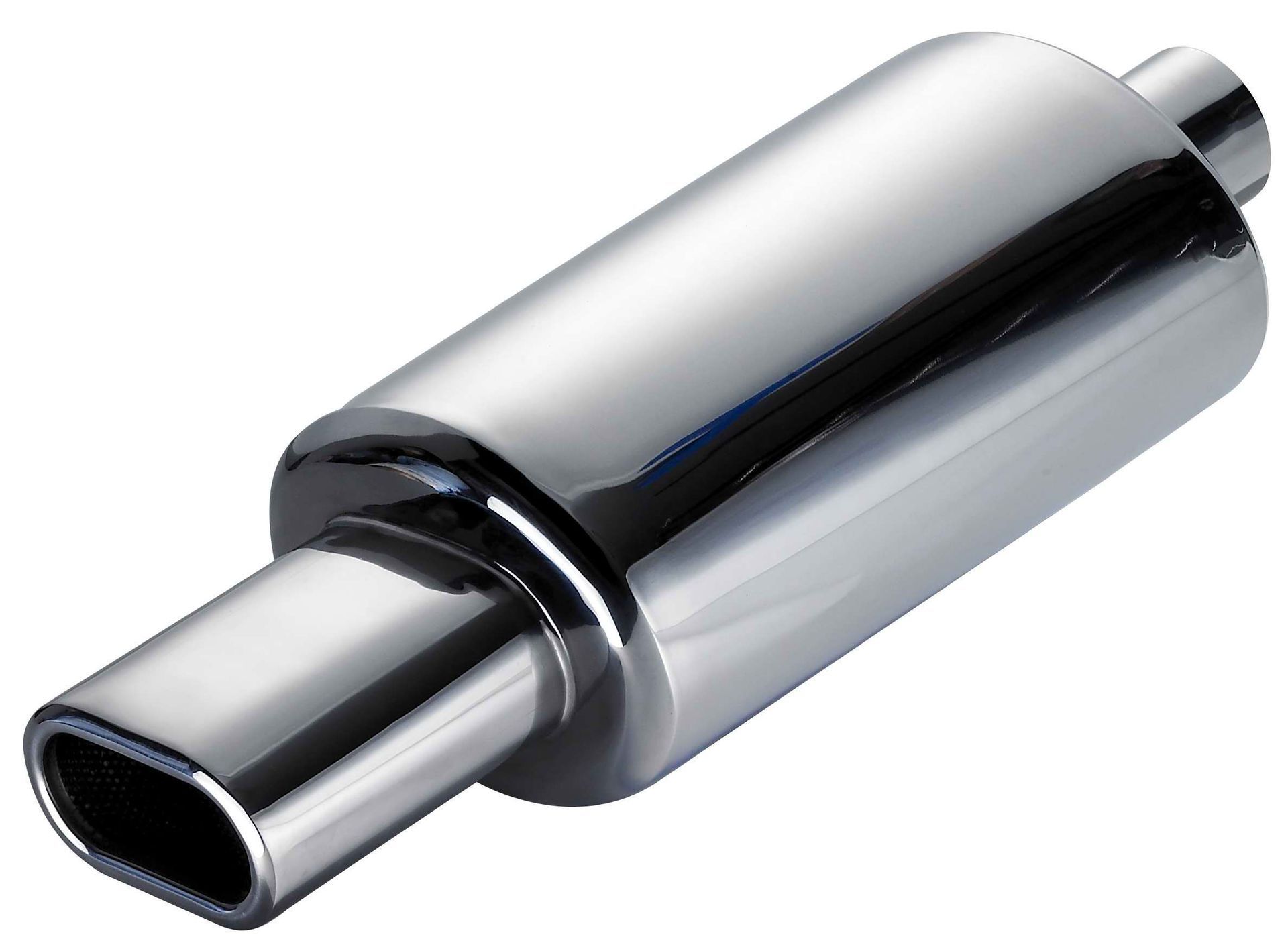

1. Automobile exhaust pipe, Fuel tank

MESCO DX53D Aluminized Steel Coil  AS Steel for auto mobile exhausted Steel pipe

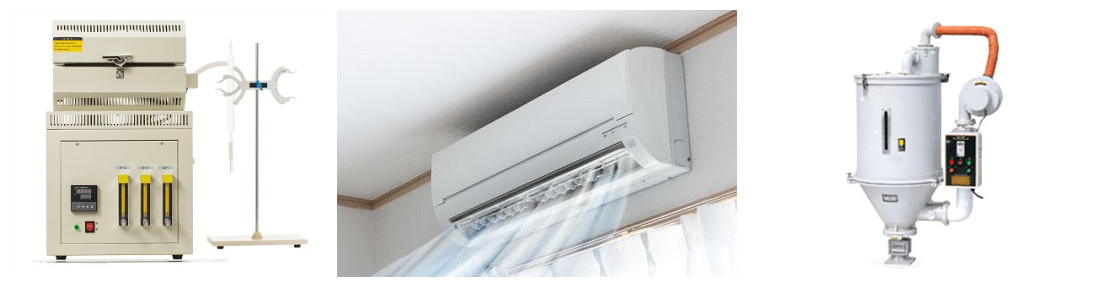

2. Combustion furnace, heat exchanger, dryer, air conditioner, etc
MESCO DX53D Aluminized Steel Coil  AS Steel for auto mobile exhausted Steel pipe

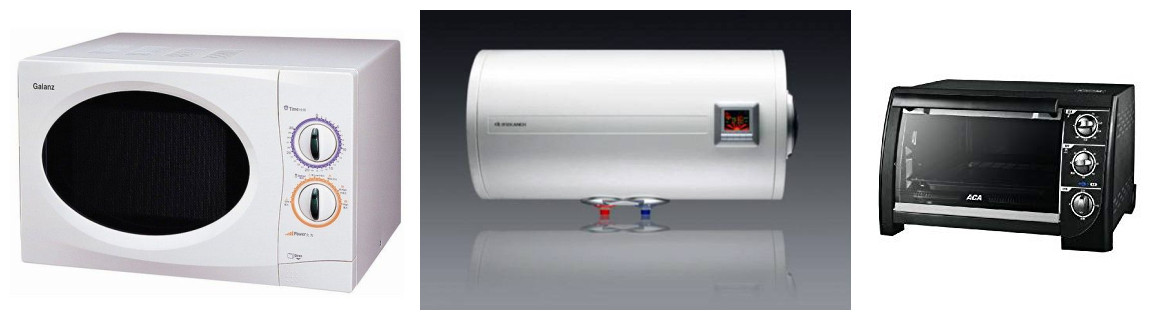

3. Household water heater, gas stove, bread box, chimney, microwave oven
MESCO DX53D Aluminized Steel Coil  AS Steel for auto mobile exhausted Steel pipe

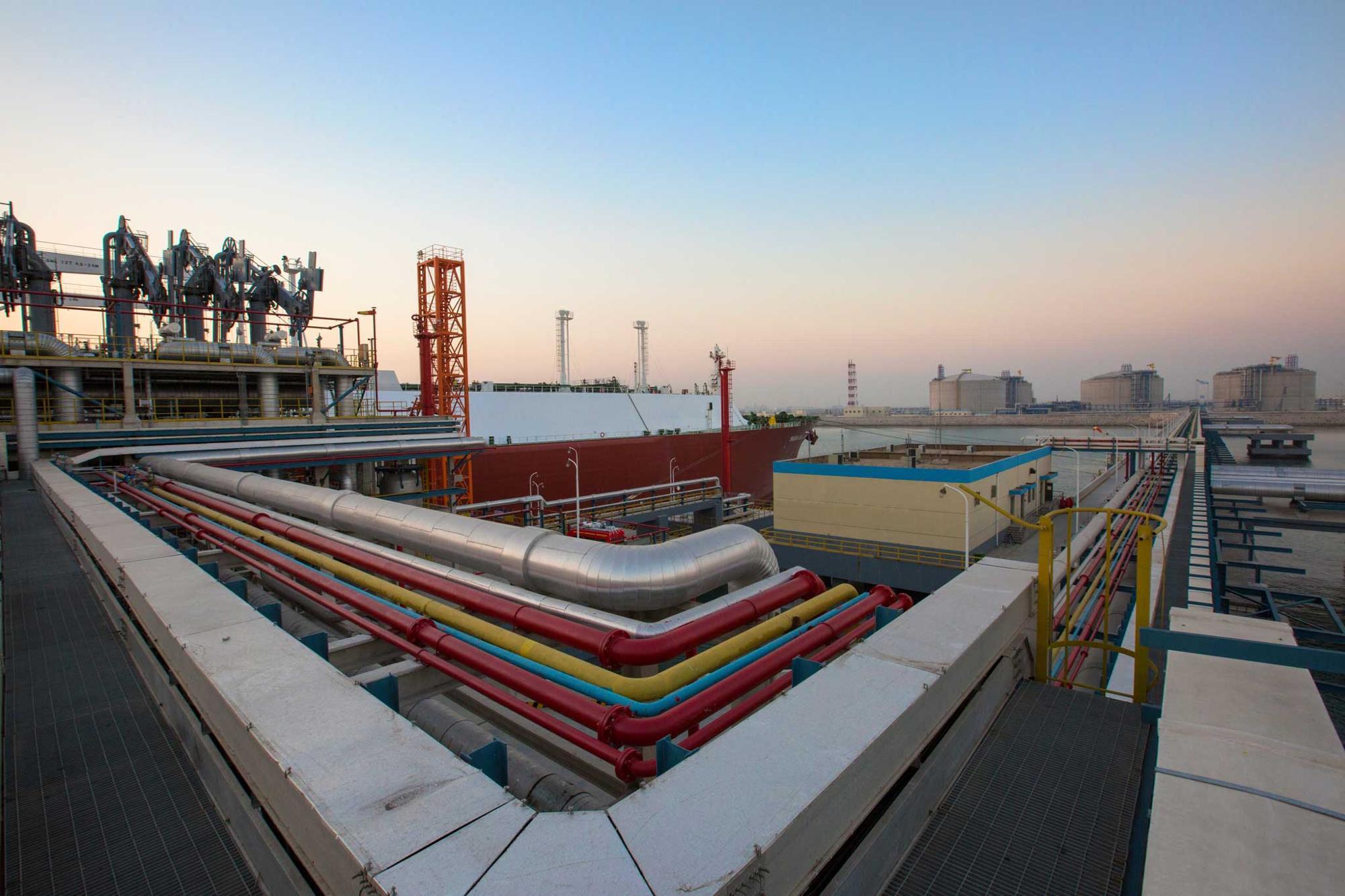

4. Oil & gas pipeline insulation project
MESCO DX53D Aluminized Steel Coil  AS Steel for auto mobile exhausted Steel pipe

Advantages & characters of aluminium silicon steel:



1.High temperature resistance: due to the specific combination of steel plate substrate and coating structure, an iron-aluminum alloy is formed, which makes the coated aluminum plate have excellent high temperature resistance.  High reflectivity can be guaranteed at 450℃.



2.Thermal reflectivity: at 480 ℃, the plate can reflect 80% of the incident heat.  Therefore, the aluminum-silicon plate can be made into an efficient heat insulation barrier or a heat reflector in high-temperature application, and the temperature in the furnace can be rapidly increased through effective heat reflection.



3.Mechanical strength: under room temperature, the mechanical strength of the aluminum plating plate is consistent with that of its base material.  At the same high temperature of 480℃, the strength of aluminized steel plate is 10 times that of aluminum plate, so the thickness of steel plate can be reduced by at least 30%

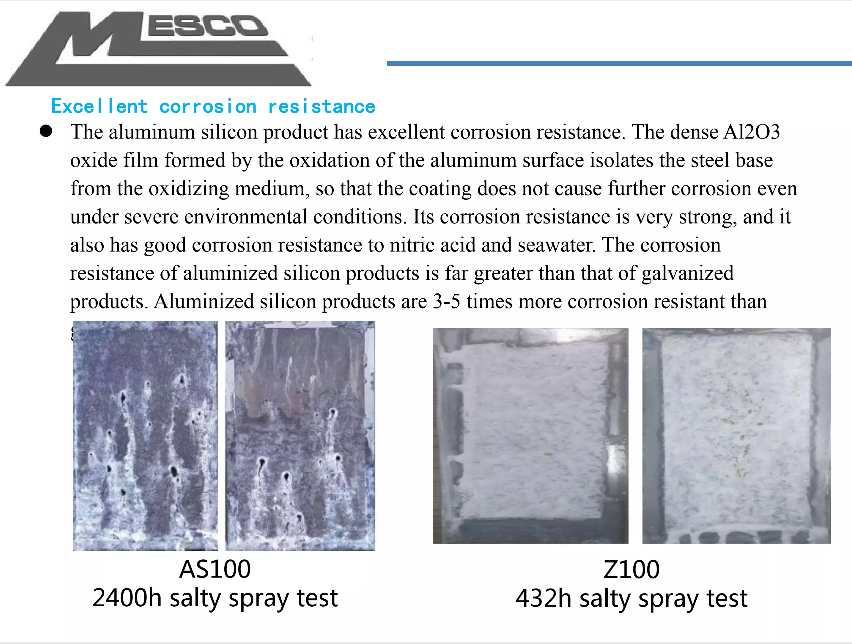

4.Corrosion resistance: In the hot dip plating process, molten aluminum reacts with oxygen in the air to form an Al2O3 protective layer, which passivates the surface of the steel plate immediately.



5.Ecological characteristics: Aluminum plated plates without chemical passivation have no effect on health, so they can be used for food processing.  Test reports from many professional groups have confirmed that it is harmless to human body and is an environmental protection product.  Aluminum plating can be comparable to stainless steel, but the price is only about 1/3 than that of stainless steel.
